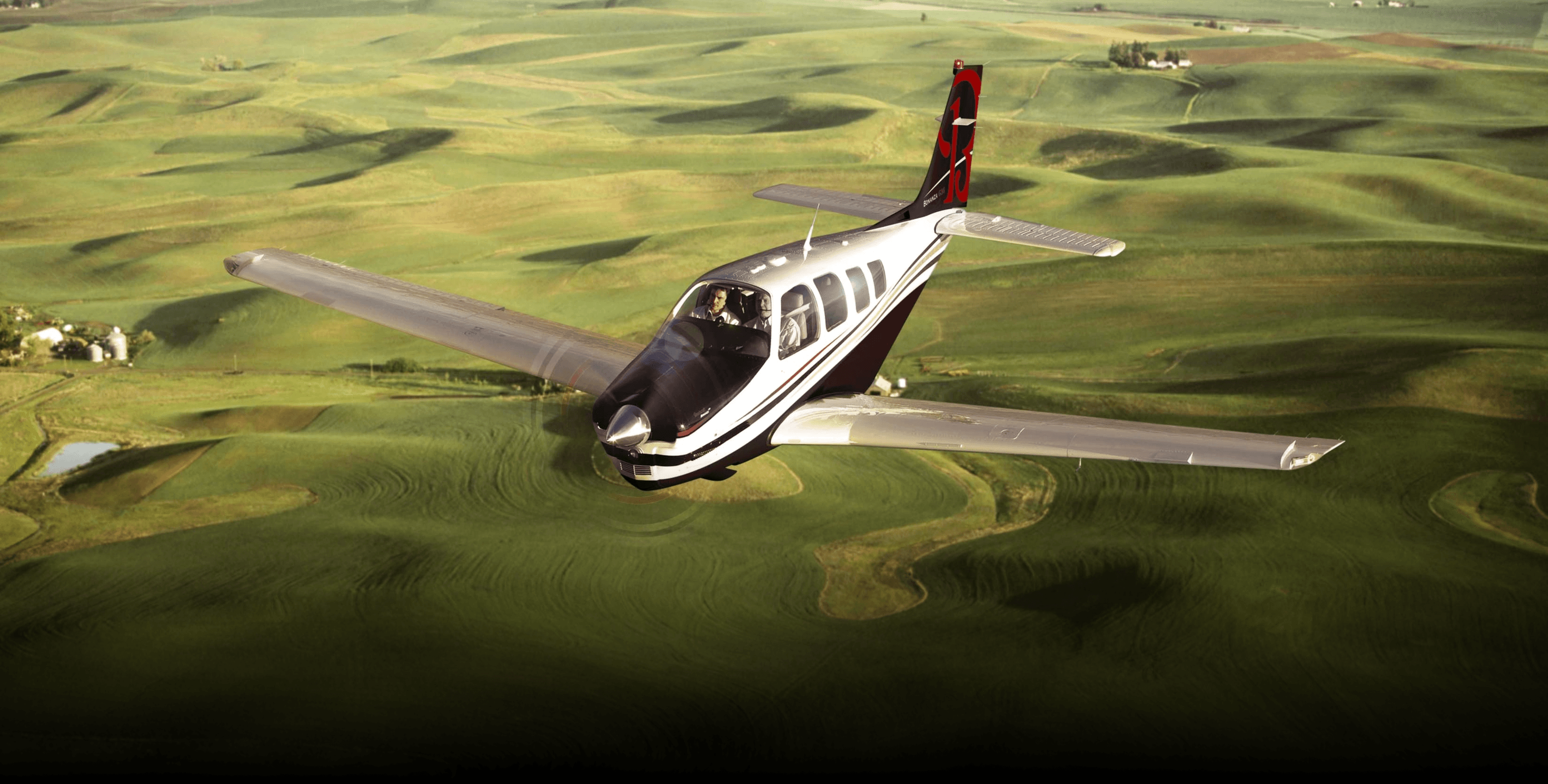

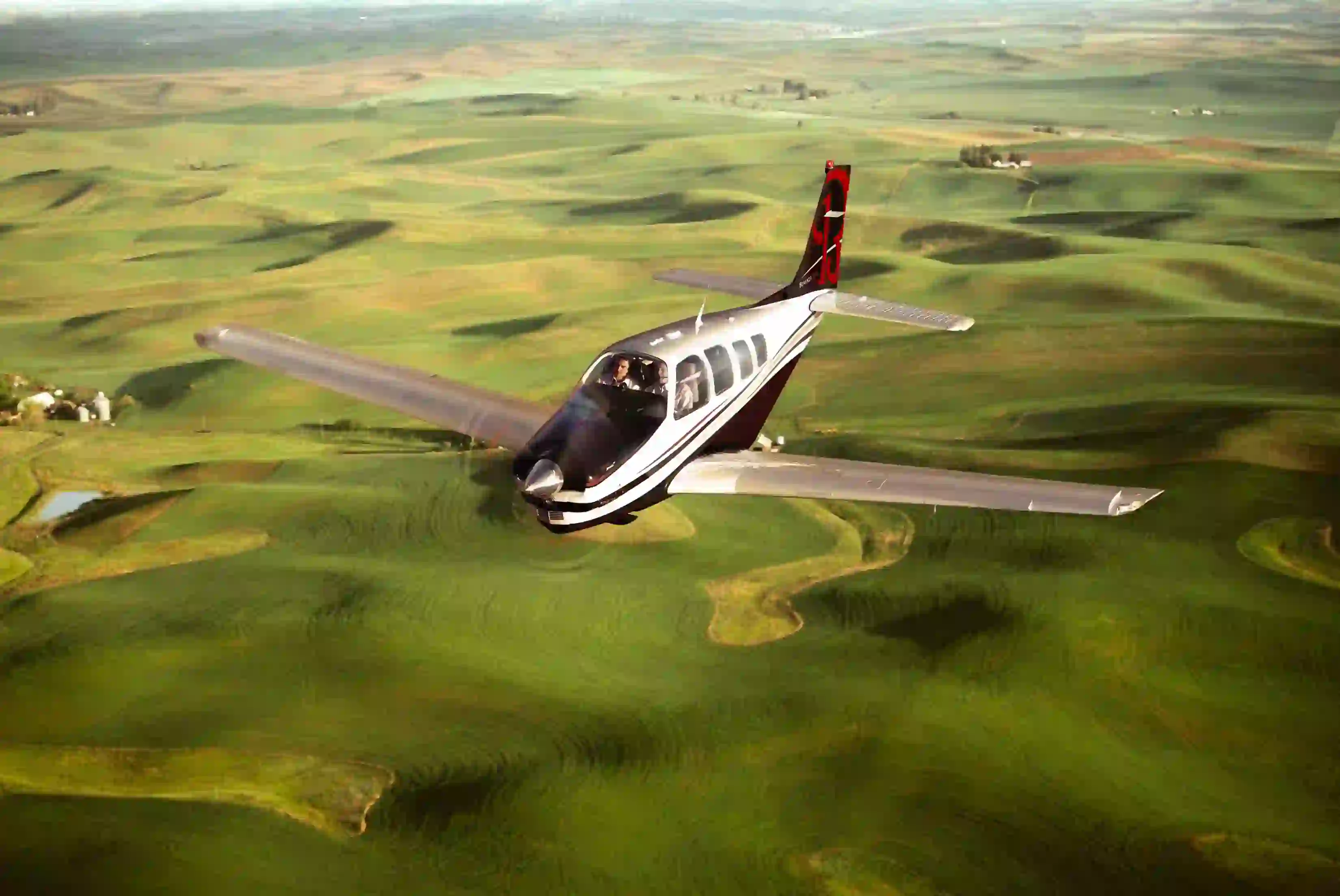

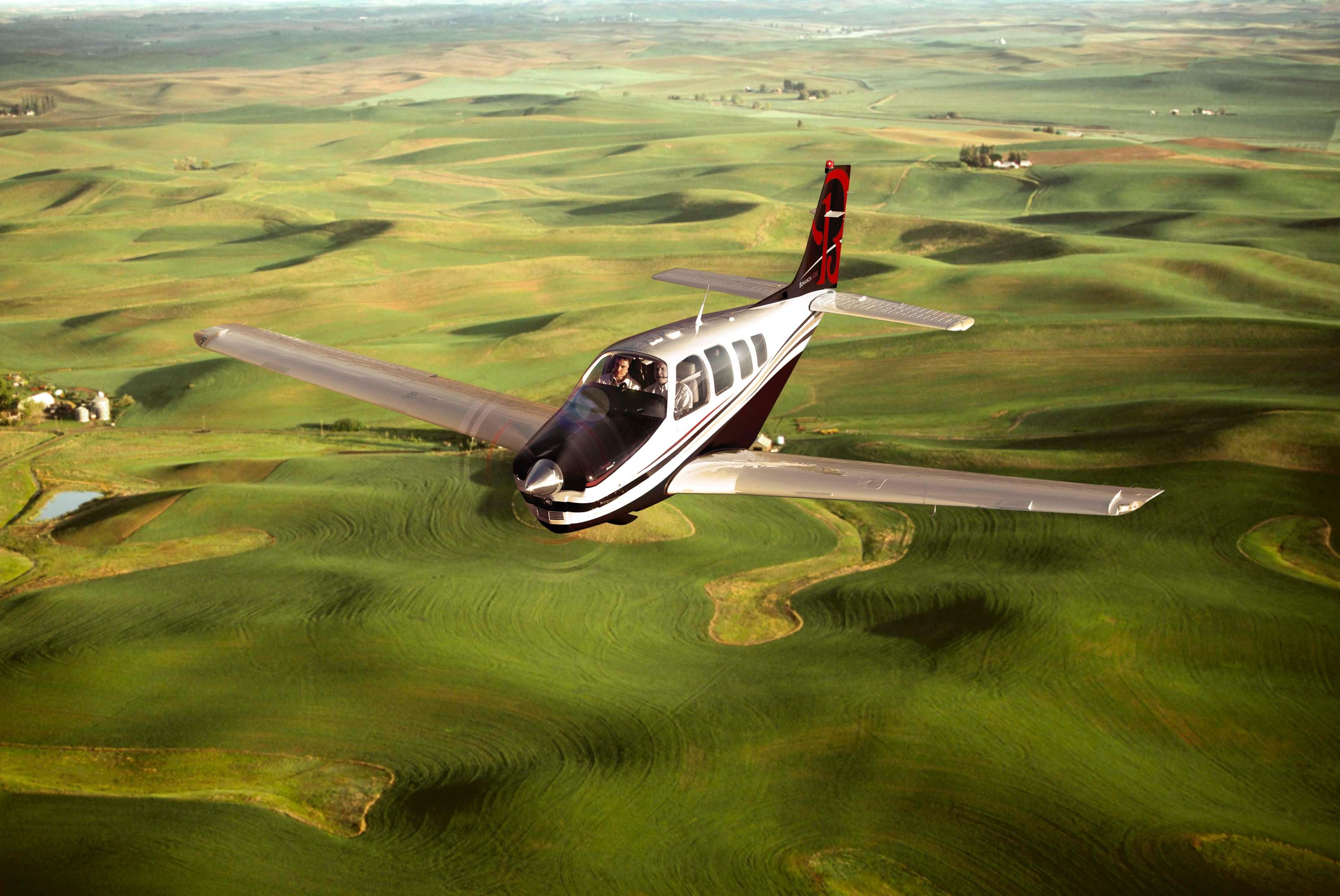

Bonanza G36

MAXIMUM RANGE
MAXIMUM RANGE920 nm
MAXIMUM CRUISE SPEED
MAXIMUM CRUISE SPEED174 ktas
MAXIMUM OCCUPANTS
MAXIMUM OCCUPANTS6
USEFUL LOAD
USEFUL LOAD1213 lb
TAKEOFF FIELD LENGTH
TAKEOFF FIELD LENGTH2180 ft

Built for Adventure

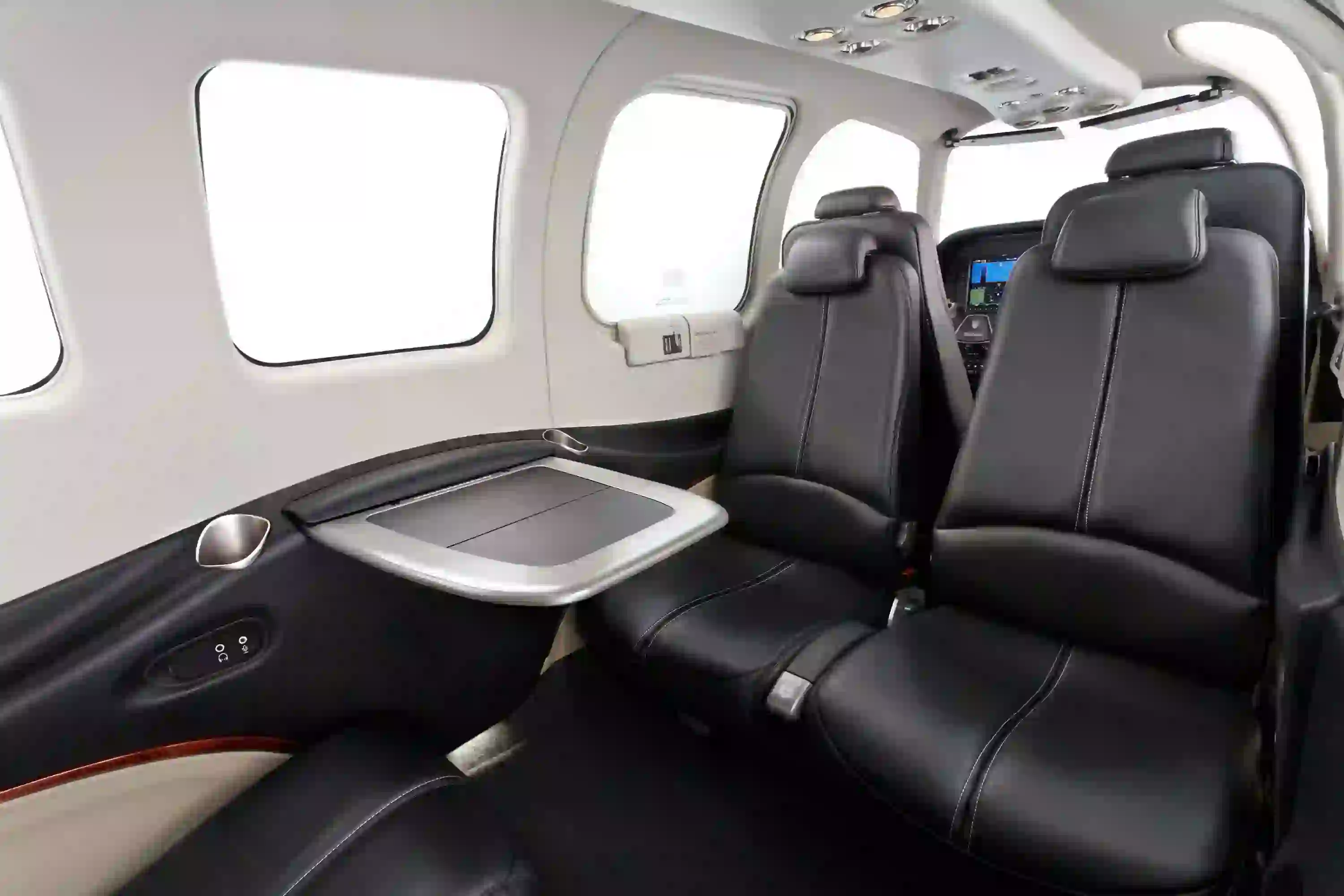

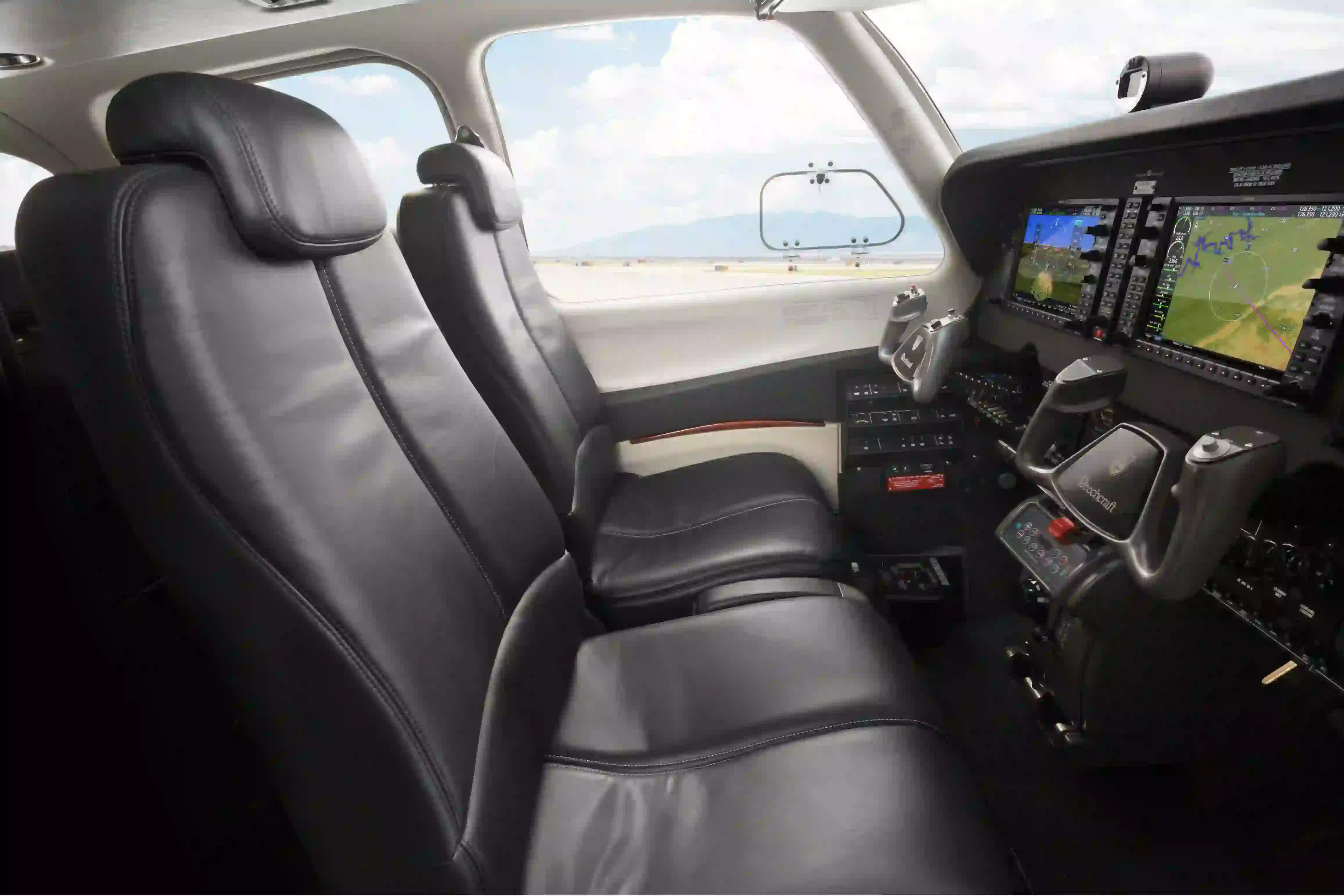

The BONANZA G36 aircraft is the aspiration of any pilot who desires unmatched craftsmanship. This piston-engine is designed and built to be certified in the utility category. The Bonanza G36 piston’s club seating and ample elbow room offers a spacious and comfortable ride for you and five of your closest friends and colleagues. With first-class technology and comfort and world-class quality, your Bonanza G36 piston is ready for any adventure.

Product card
Download brochure
View
Range Map

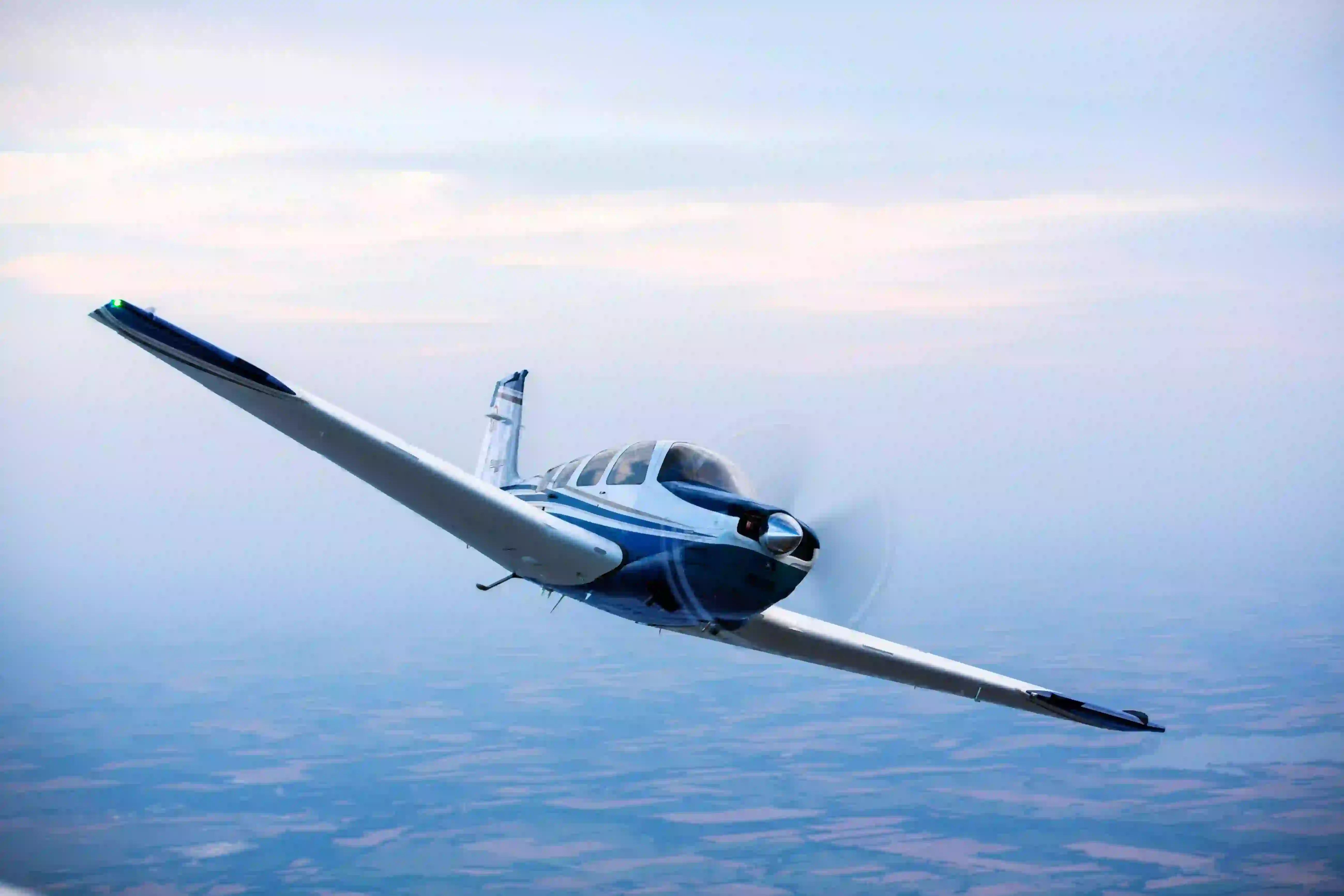

Icon of Single-Engine Luxury-blurIcon of Single-Engine Luxury

Icon of Single-Engine Luxury

-blur
Icon of Single-Engine Luxury-blurIcon of Single-Engine Luxury
-blur
Built for Business and Beyond-blurBuilt for Business and Beyond

Built for Business and Beyond

Built for Business and Beyond-blurBuilt for Business and Beyond

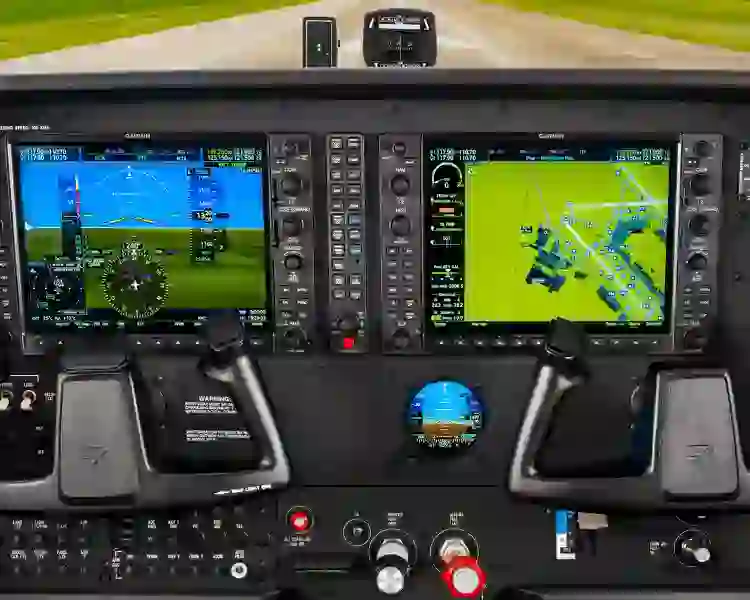

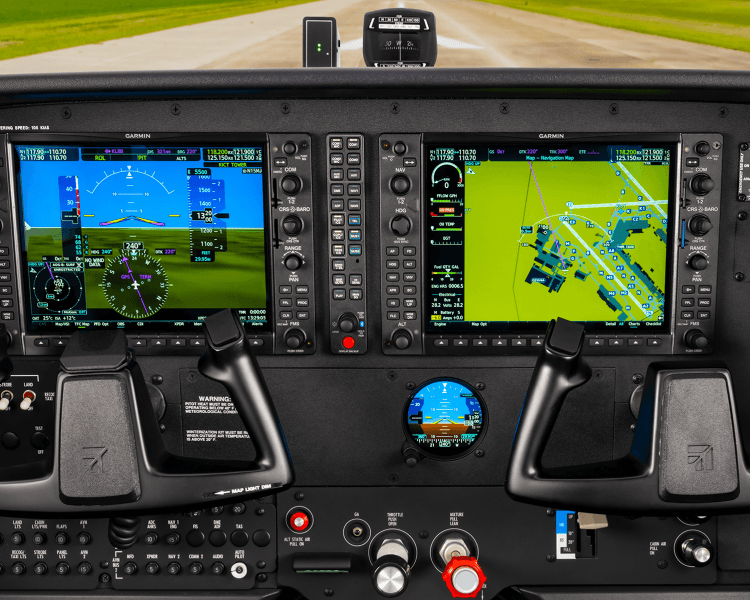

STANDARD FEATURES-blurSTANDARD FEATURES

STANDARD FEATURES

  • ADS-B Out and In

  • Wireless data base and flight plan loading

  • Garmin Electronic Stability and Protection (ESP) and Under Speed Protection (USP)

  • Garmin GI 275 Electronic Standby

  • Integrated VFR Sectional Charts

  • IFR High and Low Charts with Night Mode

  • COM frequency decoding

  • Vertical Situation Display

  • Selectable Visual Approaches

  • Guardian Integrated Carbon Monoxide Detector

  • Optional Garmin Connext Satellite Iridium

aerospares-bluraerospares

SPECIFICATION

DIMENSIONS

  • Length
  • Height
  • Wingspan
  • Wing Area
  • 27 ft 6 in (8.38 m)
  • 8 ft 7 in (2.62 m)
  • 33 ft 6 in (10.21 m)
  • 181 sq ft (16.82 sq m)

BAGGAGE CAPACITY

  • Weight
  • Volume
  • 70 lb (32 kg)
  • 10 cu ft (0.3 cu m)

WEIGHTS

  • Maximum Ramp Weight
  • Maximum Takeoff Weight
  • Maximum Landing Weight
  • Usable Fuel Weight
  • Usable Fuel Volume
  • Basic Empty Weight
  • Useful Load
  • Maximum Payload
  • Full Fuel Payload
  • 3,818 lb (1,732 kg)
  • 3,805 lb (1,726 kg)
  • 3,805 lb (1,726 kg)
  • 444 lb (201 kg)
  • 74 gal (280 1)
  • 2,605 lb (1,182 kg)
  • 1,213 lb (550 kg)
  • 1,200 lb (544 kg)
  • 769 lb (349 kg)

PERFORMANCE

  • Maximum Cruise Speed
  • Maximum Range
  • Takeoff Distance
  • Ground Roll
  • Landing Distance
  • Ground Roll
  • Service Ceiling
  • Maximum Climb Rate
  • Maximum Limit Speed
  • Stall Speed
  • 174 ktas (322 km/h)
  • 920 nm (1,704 km)
  • 2,180 ft (664 m)
  • 1,300 ft (396 m)
  • 1,700 ft (518 m)
  • 920 ft (280 m)
  • 17,500 ft (5,334 m)
  • 1,120 fpm (341 mpm)
  • 205 kias (380 km/h)
  • 59 kcas (109 km/h)

CABIN INTERIOR

  • Height
  • Width
  • Length
  • Maximum Occupants
  • 50 in (1.27 m)
  • 42 in (1.07 m)
  • 12 ft 7 in (3.84 m)
  • 6

POWERPLANT

  • Manufacturer
  • Model
  • Power Output
  • Propeller
  • Description
  • Continental Aerospace Technologies
  • 10-550-B
  • 300 hp (300 hp)
  • Hartzell
  • 3 blade metal, constant speed

NEW FEATURES AND OPTIONS

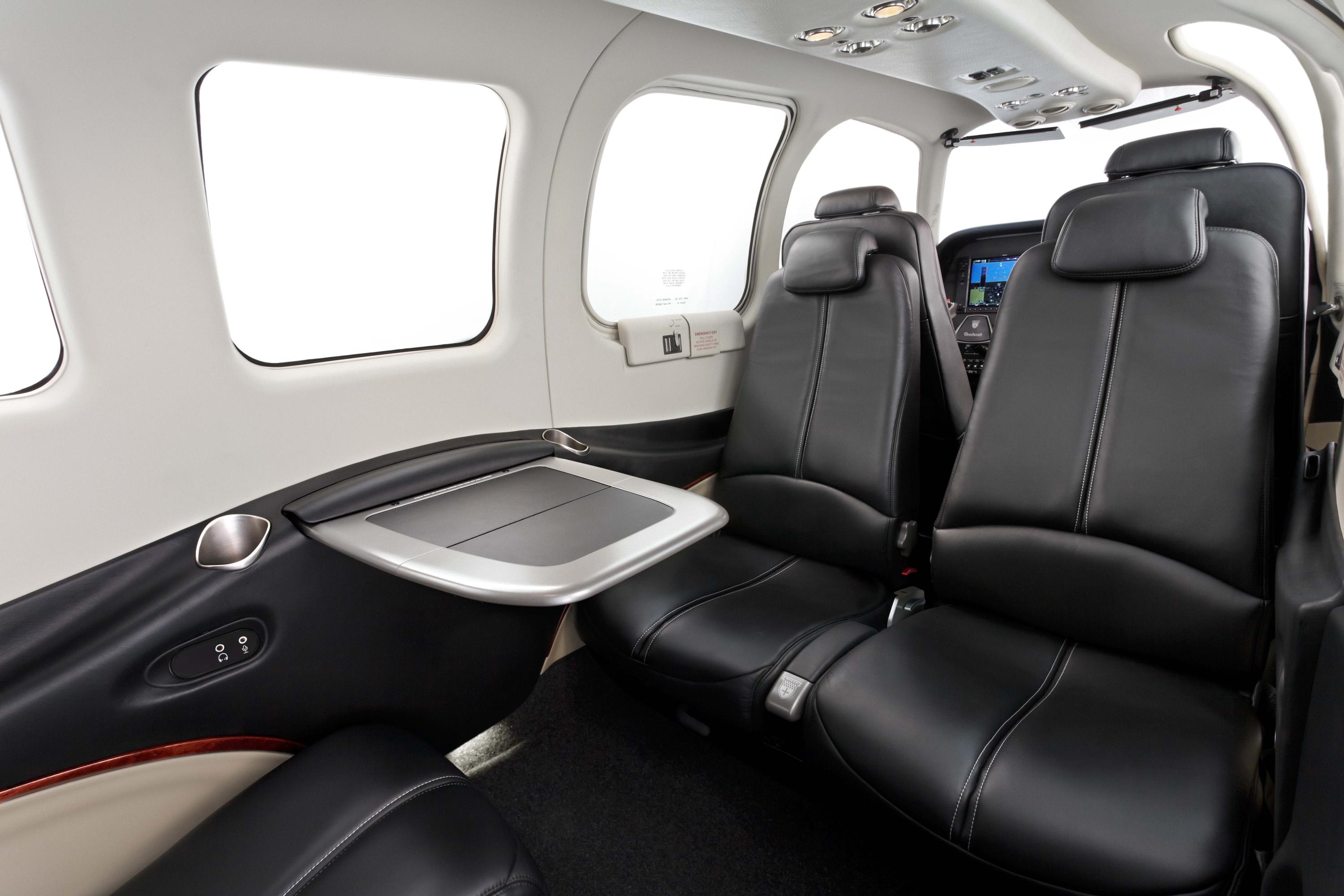

  • Leather-finished seats offer adjustable lumbar support for maximum comfort.

  • Spacious cabin can be quickly reconfigured into different layouts to accommodate special cargo.
